Vehicle Rear View CCTV Systems
7" Colour View Rear CCTV Systems
Reversing is a tricky business, especially when you are not able to see what is behind you. as soon as you engage reverse gear there are risks everywhere children playing, tight parking spaces, unfamiliar loading ramps and a whole host of un-foreseen dangers.Vehicle Rear view System give a clear overview of what is happening behind the vehicle, they proactively improve road traffic safety.

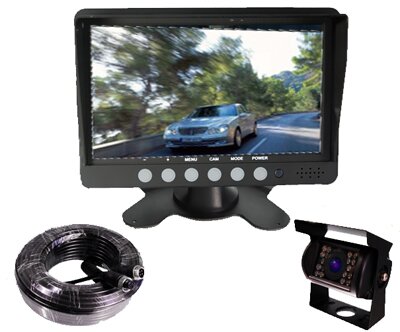

Complete System Includes
- 420TVL IR Colour Waterproof Camera with 110 degree wide angle lens.
- 7" LCD Monitor With Video Input & Mounting Bracket.
- 12-32V DC Input
- 20 metres of screened cable with plugs fitted.
"DIS"
All Prices Exclude Carriage and UK VAT
| Specifications | |
|---|---|
| TFT-LCD Color Monitor | |
| Screen Dimensions | 7" |
| Display Pixel | 1440(H)×234V) |
| Display Type | Color TFT-LCD |
| Aspect Ratio | 16:9 |
| Power Supply | DC 12~32V |
| Mirror Function | YES |
| Size | 200(W) x 133(H) x 38(D)mm |
| Rear View Camera | |
| Image Pick-up Device | 1/3 SHARP Color CCD Camera |
| Horizontal Resolution | 420TV Lines |
| Usable Illumination | 0LUX with 18 IR LED |
| Video Output | 1.0Vp-p 75Ω , Negative |
| Electronic Shutter Time | PAL 1/50-1/100,000Sec |
| The lens focal length and angle | 3.6mm 92° |
| Power Supply | DC12V±10%,250 mA |
| Size | 91.2(L)*72(W)*67.5(H) |
| Weight | 380g |
